ThermoFin C and ThinFin C Extruded Aluminum Heat Transfer Plates

Comparing to a different company's heat transfer plate? Read "WHY THERMOFIN".

INSTALLED UNDER THE SUB-FLOOR (for on the sub-floor or walls or ceilings, see ThermoFin U)

ThermoFin C
ThinFin C

Why ThermoFin?  It is better by design. More details about ThermoFin are at this link. BETTER BY DESIGN

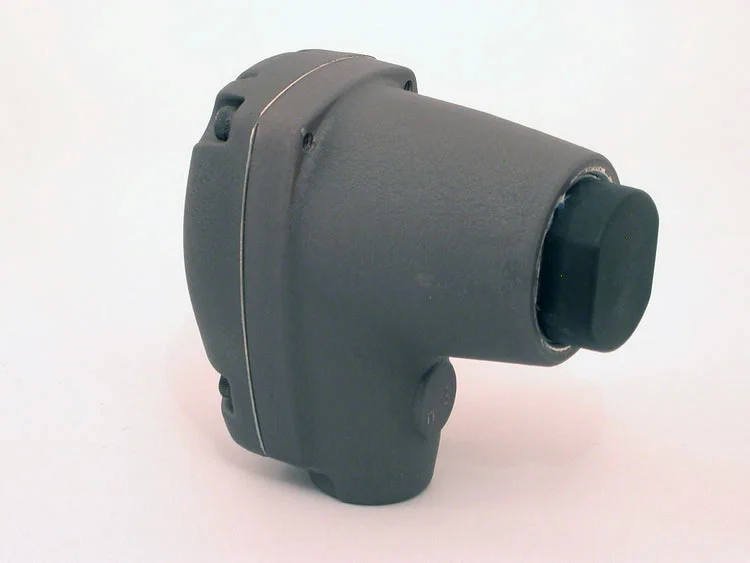

Radiant rents a Pneumatic Palm Hammer for installing PEX.

Radiant rents a Pneumatic Palm Hammer for installing PEX.

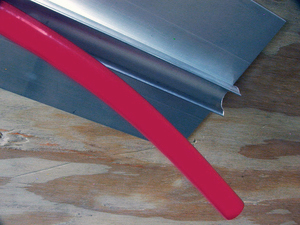

Radiant PEX tubing is installed in ThermoFin using a pneumatic palm hammer - click image for more info on installation tools.

Radiant PEX tubing is installed in ThermoFin using a pneumatic palm hammer - click image for more info on installation tools.

You can cut the plates with a carbide tipped blade for non-ferrous metal. Use a file or tool to smooth the channel cut edges if needed.

You can cut the plates with a carbide tipped blade for non-ferrous metal. Use a file or tool to smooth the channel cut edges if needed.

Tips for installing the ThermoFin plates - use a short piece of tubing to align the ends of the plates with a 1/2" gap between plate ends.

Tips for installing the ThermoFin plates - use a short piece of tubing to align the ends of the plates with a 1/2" gap between plate ends.

Use a roofing nailer or self drilling screws like those pictured above to attach the plates. #8 or #10 Hex, length 3/4"

Use a roofing nailer or self drilling screws like those pictured above to attach the plates. #8 or #10 Hex, length 3/4"

Under Floor Radiant Heating Free samples of ThermoFin are available from the website at this link: http://www.radiantengineering.com/contact/. Contact the manufacturer, Radiant Engineering, radiantengineering.com, to purchase ThermoFin, or for more information on custom design of hydronic radiant heating systems. Patented ThermoFin is made in the USA.

Why do ThermoFin heat transfer extrusions outperform thin folded sheet metal and graphite heat transfer plates? Several important factors make the difference. ThermoFin heat transfer plates are extruded of a high conductivity aluminum extrusion alloy. The overall plate thickness is .0625" (1/16").
Why do ThermoFin heat transfer extrusions outperform thin folded sheet metal and graphite heat transfer plates? Several important factors make the difference. This page on our wesite has more details about the comparison: http://radiantengineering.com/new-page ThermoFin heat transfer plates are extruded of a high conductivity aluminum extrusion alloy.
For more detailed information about this comparison of heat transfer plates with the patented ThermoFin from Radiant Engineering Inc, go to The Heat Exchanger Blog at http://radiantengineering.com/theheatexchanger/ Radiant Engineering Inc specializes in hydronic heating and hydronic distribution systems. Hydronics allow for choice of energy sources for heating and cooling, versatility in the selection of distribution equipment, low energy consumption and heat loss related to space heating distribution, and zoning to address diversity in building designs and uses.
Contact the manufacturer, Radiant Engineering, (link below) to purchase ThermoFin, or for more information on custom design of hydronic radiant heating systems. Patented ThermoFin is made in the USA. See the "Heat Exchanger" blog on the website for a product comparison study. http://www.radiantengineering.com/contact ThermoFin is also known as Climate Trak TM distributed by Viega.
